SPECIFICATIONS KOMATSU HAULPAK 930E-4

Diposting oleh Invisible on Rabu, 09 Maret 2011

Haulpak Komatsu 930E-4 is one large dump truck. Judging from its name, we can determine the specifications of these trucks dump. Haulpak is a brand of that unit in the manufacturer Komatsu. 930 is the capacity of the units of £ 930,000 or 422 Tons.

HAULPAK 930E-4
HAULPAK 930E-4
HAULPAK 930E-4
HAULPAK 930E-4
HAULPAK 930E-4
SPECIFICATIONS KOMATSU HAULPAK 930E-4


ENGINE
Make and model . . . . . . . . . . . . . Komatsu SSDA16V160*
Fuel . . . . . . . . . . . . . . . . . .Diesel
Number of cylinders . . . . . . . . . . .16
Operating cycle . . . . . . . . . . . . .4 cycle
Rated brake power** . . . . . . . . . . 2014 kW 2,700 HP @ 1900 rpm
Flywheel power*** . . . . . . . . . . . 1902 kW 2,550 HP @ 1900 rpm
Weight (wet) . . . . . . . . . . . . . . 9608 kg 21,182 lb

* Tier 2 emissions compliant. Tier 1 emissions engine is optional outside of North America.
** Rated brake power is the output of the engine as installed in this machine, at governed rpm and with engine manufacturer’s approved fuel setting. Accessory losses included are water pump, fuel pump and oil pump.

*** Flywheel power is the rated power at the engine flywheel minus the average accessory losses. Accessories include fan and charging alternator. Rating(s) represent net engine performance in accordance with SAE J1349 conditions.


ELECTRIC DRIVE
AC/DC CURRENT
Alternator . . . . . . . . . . . . . . . GTA-41
Dual impeller in-line blower . . . . . .340 m3/min 12,000 cfm

Control . . . . . . . . . . . . . . . . .AC Torque Control System
Motorized wheels* . . . . . . . . . . . GDY106 Induction Traction Motors
Ratio** . . . . . . . . . . . . . . . . 32.62:1
Speed (maximum) . . . . . . . . . . . . 64.5 km/h 40 mph

* Wheel motor application depends upon gross vehicle weight, haul road grade, haul road length, rolling resistance and other parameters. Komatsu and G.E. must analyze each job condition to assure proper application.
** Optional ratios available.


TIRES AND RIMS
Rock service, tubeless, radial tires
Standard tire*. . . . . . . . . . . . . 53/80 R63
Taper lock, five (5) piece rim
914 mm x 1600 mm x 127 mm 36'' x 63'' x 5.0'' rim assembly.
Rims rated at 758 kPa 110 psi cold inflation pressure.
Typical tire weight . . . . . . . . .26127 kg 57,600 lb
* Tires should meet application requirements for tkph/tmph, tread, compound, inflation pressure, ply rating or equivalent, etc.


BODY
All-welded steel flat floor body with horizontal bolsters and full canopy. Eyebrow, rear wheel rock ejectors, body up sling and rubber mounts on frame are standard. Pivot exhaust heating optional.
Floor sheet . . . . . . . . . . . . 16 mm 0.63'' 1379 mPa 200,000 psi tensile strength steel (two-piece)
Front sheet . . . . . . . . . . . . .9 mm 0.35'' 1379 mPa 200,000 psi tensile strength steel
Side sheet . . . . . . . . . . 8 mm 0.31'' 1379 mPa 200,000 psi tensile strength steel
Canopy sheet . . . . . . . .5 mm 0.19'' 690 mPa 100,000 psi
Struck . . . . . . . . . . . . . . . 171 m3 224 yd3
Standard SAE heaped 2:1 . . . . . . .211 m3 276 yd3
Standard Komatsu body weight . . . 30362 kg 66,936 lb
*Komatsu must approve all bodies through a Body Application Worksheet


CAB
Advanced Operator Environment with integral 4-post ROPS/FOPS structure Level 2, adjustable air suspension seat w/lumbar support and arm rests, full-size passenger seat, maximum R-value insulation, tilt and telescoping steering wheel, electric windshield wipers w/washer, tinted safety glass, power windows, Komatsu Payload Weighing System, 55,000 Btu/hr heater and defroster, 21,600 BTU/hr air conditioning (HFC - 134A refrigerant).


FRAME
Advanced technology, full butt-welded box sectional ladder-type frame with integral ROPS supports,integral front bumper, rear tubular cross members, steel castings at all critical stress transition zones, rugged continuous horsecollar.

Plate material . . . . . . . . . . 482.6 mPa 70,000 psi tensile strength steel
Casting material . . . . . . . . . 620.5 mPa 90,000 psi tensile strength steel
Rail width . . . . . . . . . . . .305 mm 12''
Rail depth (minimum) . . . . . . . 864 mm 34''
Top and bottom plate thickness . .45 mm 1.77''
Side plate thickness . . . . . . .25 mm 0.98''
Drive axle mounting . . . . . . . Pin and spherical bushing
Drive axle alignment . . . . . . .Swing link between frame and axle


BRAKING SYSTEM
Service brakes: oil-cooled, hydraulic-actuated, multiple disc brakes at each wheel. Traction system wheel slip/slide control.
Max. service apply pressure . . . .17237 kPa 2500 psi
Total friction area per brake . . .97025 cm2 15,038 in2
Emergency brakes . . . . . . . . .Automatically applied prior to hydraulic system pressure dropping below level required to meet secondary stopping requirements.
Wheel brake locks . . . . . . . . .Switch activated
Parking brakes . . . . . . . . . . Multiple disc, spring-applied, to hydraulic system pressure dropping below level required to meet secondary stopping requirements.

Wheel brake locks . . . . . . . . .Switch activated
Parking brakes . . . . . . . . . . Multiple disc, spring-applied,
hydraulically-released, dry brakes on inboard end
hydraulically-released, dry brakes on inboard end
±15% grade at maximum gross vehicle weight.
Electric dynamic retarder . . . . .Max 4026 kW 5400 hp Continuous 2460 kW 3300 hp Continuously rated high-density blown grids w/retard capacity at low speeds and retard in reverse propulsion.


SUSPENSION
Variable rate hydro-pneumatic with integral rebound control
Max. front stroke . . . . . . . . . .328 mm 12.92''
Max. rear stroke . . . . . . . . . . 239 mm 9.40''
Max. rear axle oscillation . . . . . ±6.5°


COOLING SYSTEM
L&M radiator assembly, split-flow, with deaerator-type top tank.
Radiator frontal area . . . . . . . .7.02 m 75.5 ft

SERVICE CAPACITIES Cooling system . . . . . . . . .594 L . . . .157 U.S. gal
Crankcase* . . . . . . . . . . . . .280 L . . . . .74 U.S. gal
Hydraulic system . . . . . . . . . 1325 L . . . .350 U.S. gal
Motor gear box (each) . . . . . . .95 L . . . . .25 U.S. gal
Fuel . . . . . . . . . . . . . . . . 4542 L . . .1200 U.S. gal
* Includes lube oil filters


Hydraulic System
HAULPAK 930E-4 Hydraulic System

Electric System
HAULPAK 930E-4 Electric System

Weight Distribution

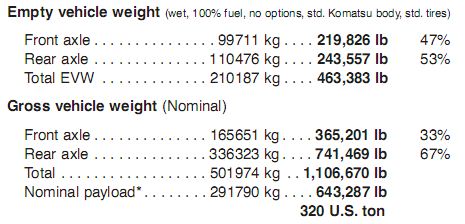

HAULPAK 930E-4 Weight Distribution
